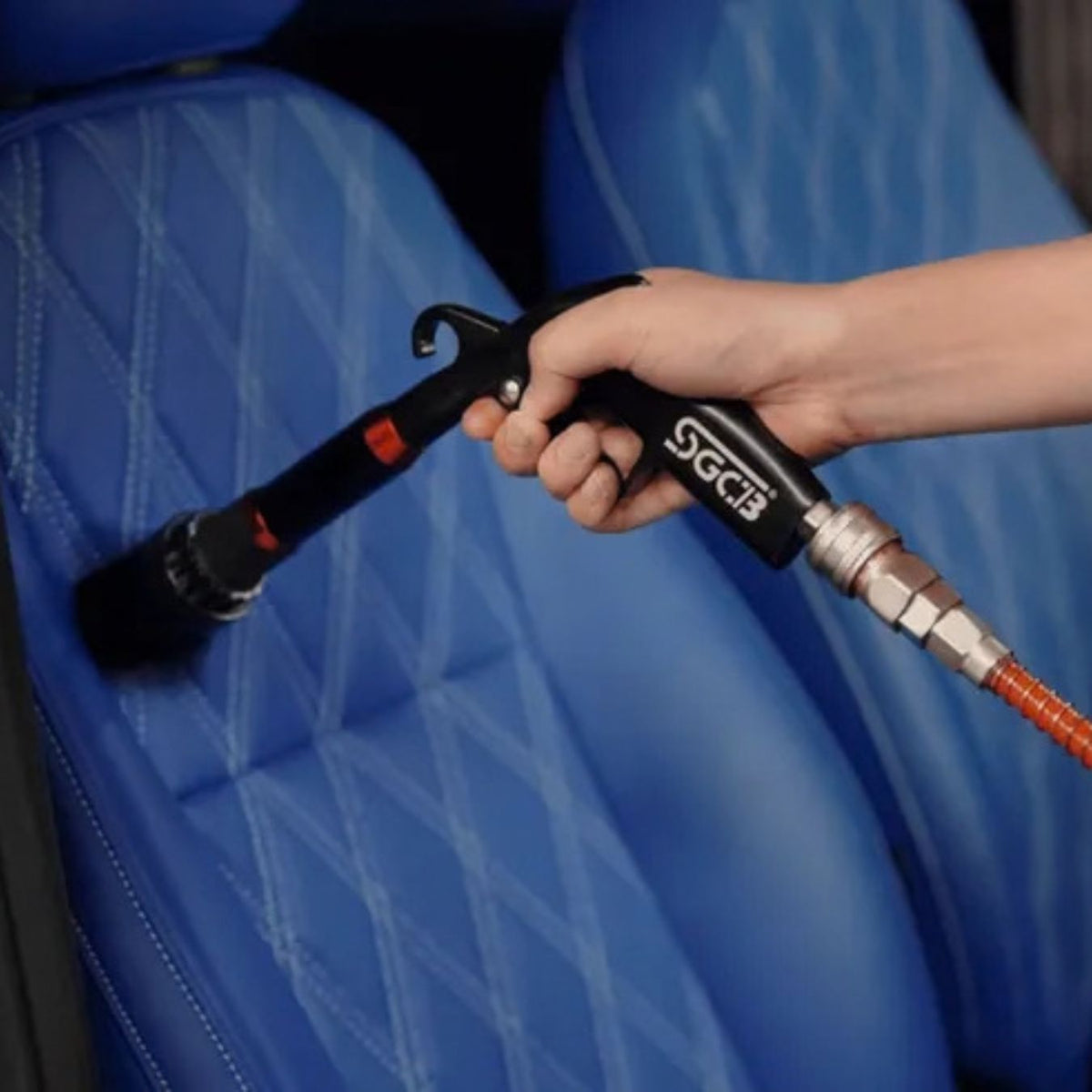

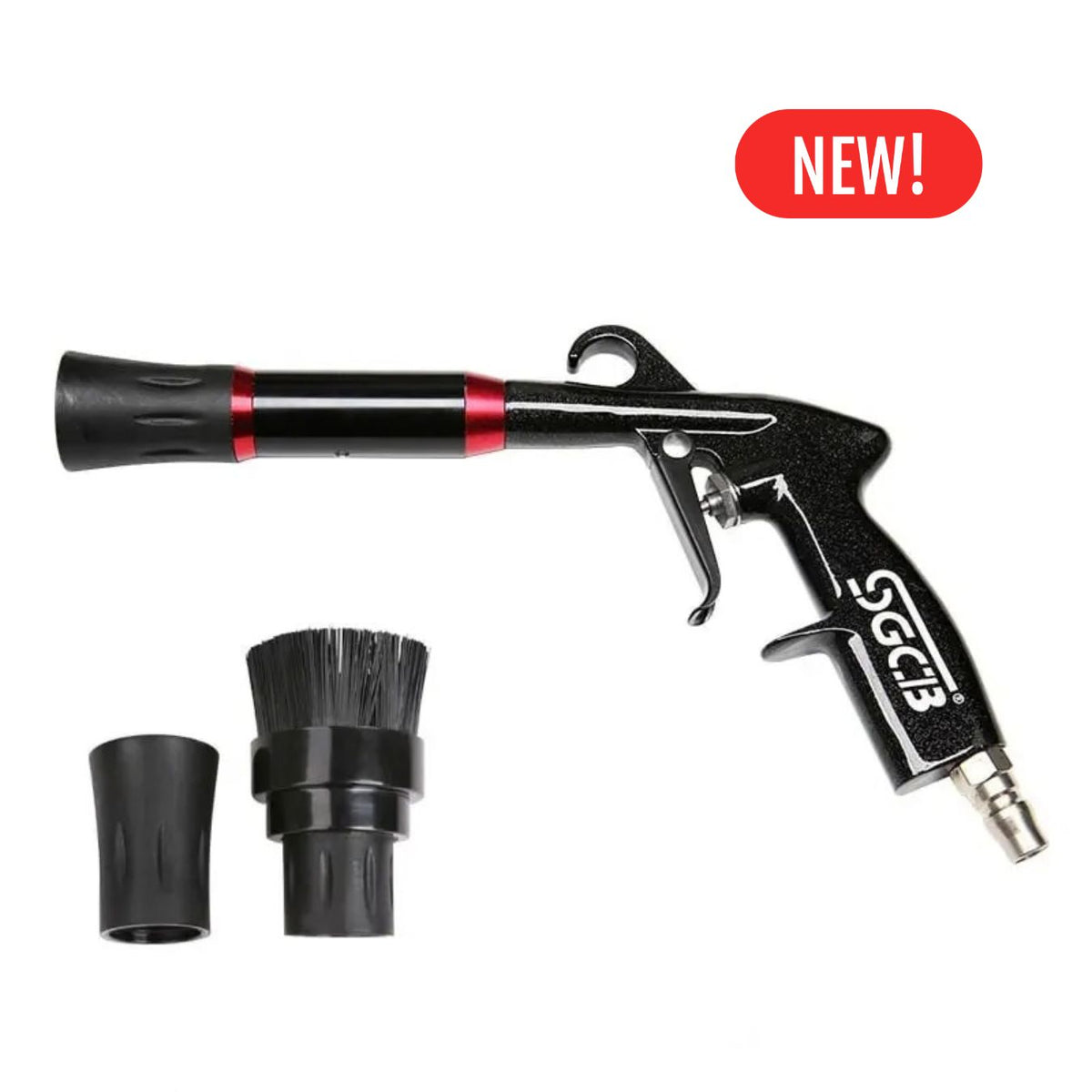

The SGCB Heavy Duty Interior Air Gun (Type SGGC077) delivers professional-grade Tornador-style air cleaning designed to tackle the toughest vehicle cabins. Unlike entry-level air pulse guns that rely on wear-prone silicone tubes, the SGGC077 features a precision copper bearing drive mechanism. This heavy-duty assembly spins at extremely high RPMs, generating a powerful, consistent "tornado" air vortex that forcefully dislodges dirt, grit, sand, and pet hair from deep within carpet fibres, fabric upholstery, door cards, and intricate dashboard vents.

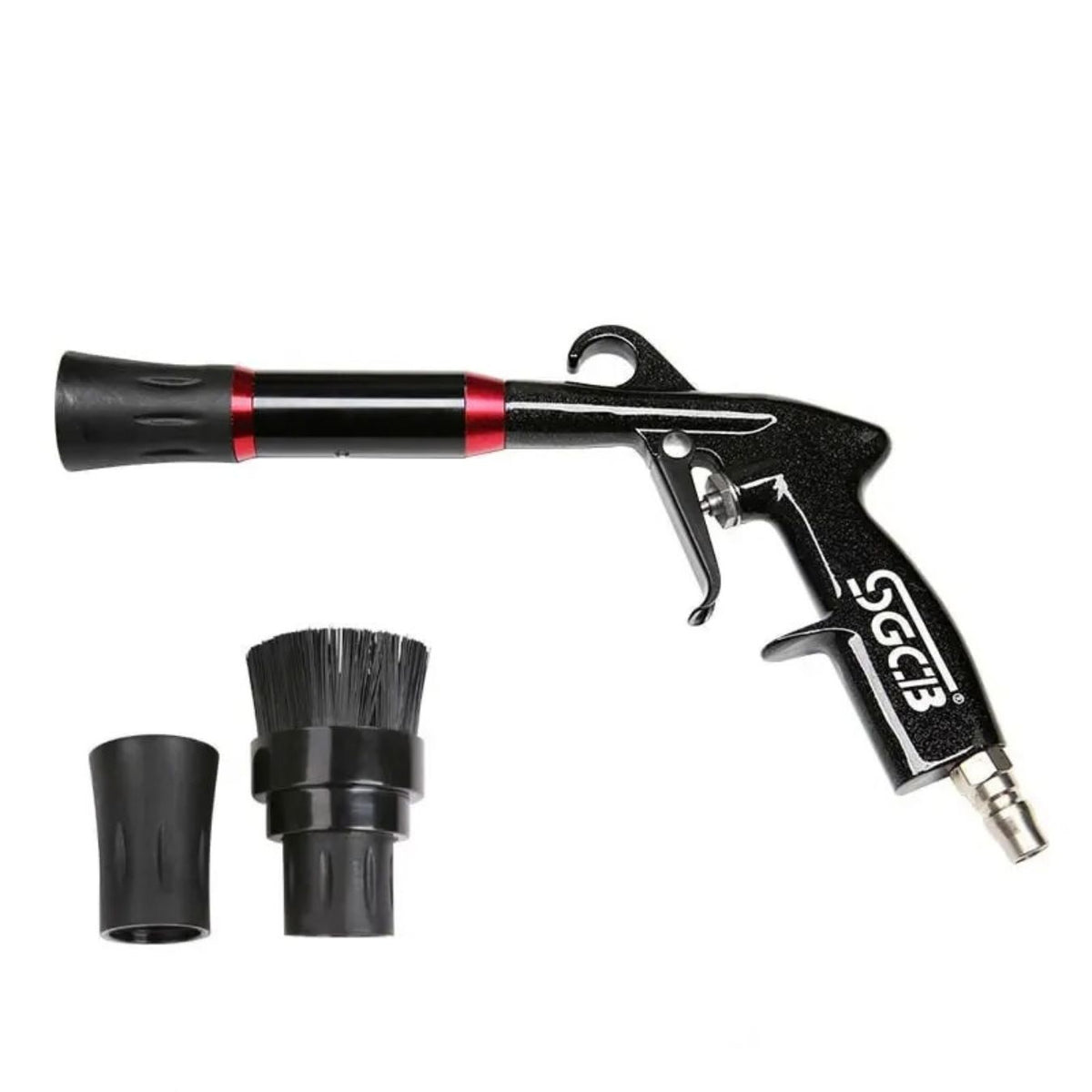

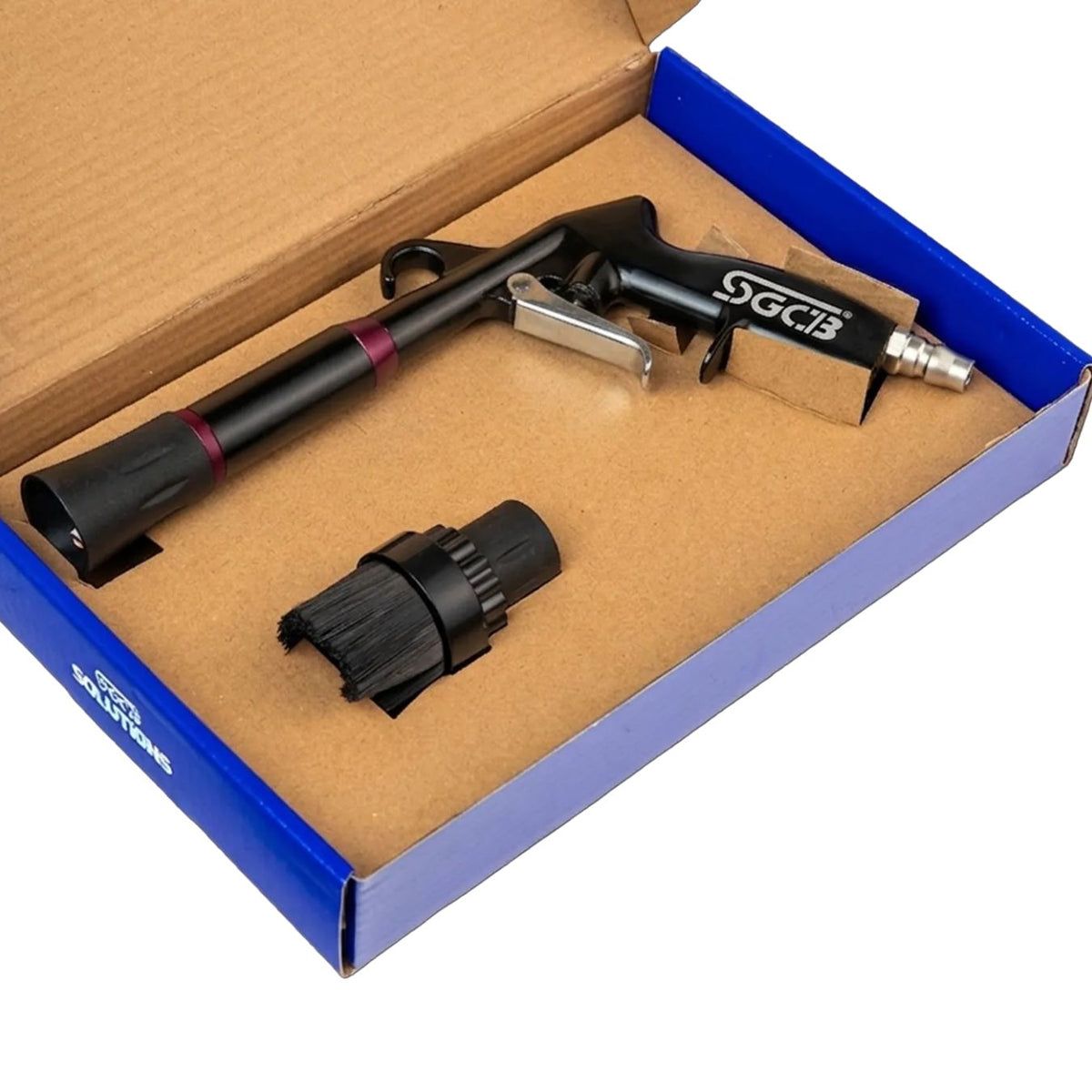

Constructed with a rugged painted aluminium alloy housing and supplied with a detachable nylon brush head, the SGGC077 is built for continuous, daily shop use. It delivers smooth, non-stalling rotational force that significantly speeds up interior detailing workflows.
Key Features
- Copper Bearing Drive Mechanism: Features a high-speed metallic bearing instead of a basic silicone hose, delivering higher rotational speeds, stronger cleaning force, and superior long-term durability.
- Tornador-Style Air Vortex: Creates a rapid, multi-directional air pulse that agitates contaminants out of tight seams, textured trim, and deep carpet piles where straight air blowers fail.
- Detachable Nylon Brush Head: Allows simultaneous mechanical sweeping and high-velocity air blasting to dislodge stubborn grime on dashboards, leather stitching, and switchgear.
- Industrial Build Quality: Heavy-duty aluminium alloy handle resists impact, corrosion, and wear in busy commercial detailing environments.

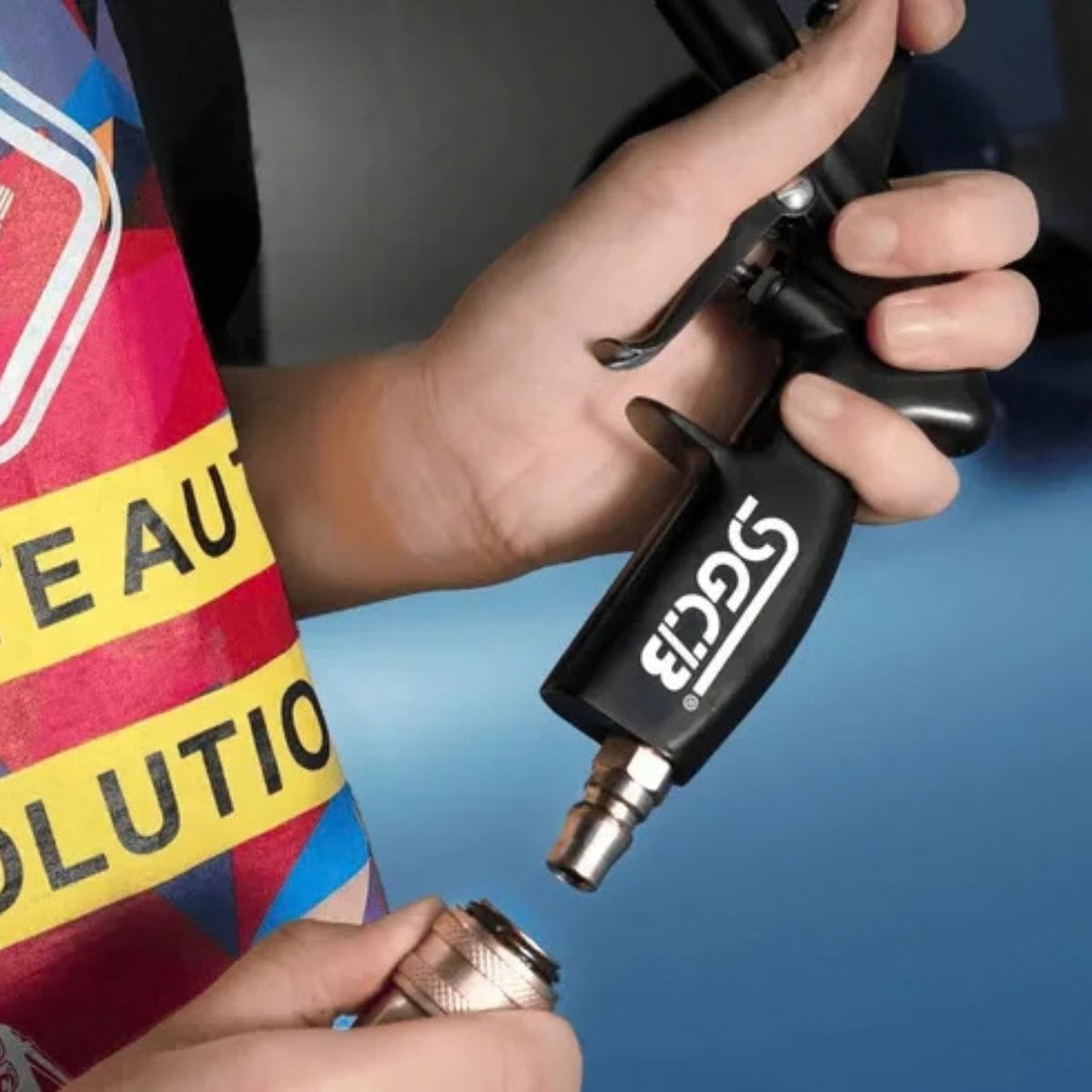

- EU Standard Air Fitting: Factory-fitted with a standard 1/4" PM20 quick-release air coupling.
Specifications
- Model: SGGC077 (EU Specification)
- Drive Mechanism: Internal high-speed rotating copper bearing
- Operating Air Pressure: 6.0 – 8.0 bar / 85 – 115 PSI
- Air Consumption: Approx. 120 L/min (requires a compressor capable of 4.5+ CFM output for sustained use)
- Inlet Coupling: 1/4" BSP (EU PM20 Quick Release)
- Net Weight: 0.52 kg
Frequently Asked Questions (FAQ)
How does a copper bearing air gun compare to traditional silicone tube air guns?
Traditional entry-level Tornador-style air guns rely on a flexible silicone inner tube inside the cone to create the spinning pulse effect. While functional, silicone tubes rely on physical whip action, which creates internal friction and drag. Over time, silicone nozzles naturally fatigue, split, kink, or lose rotational speed.

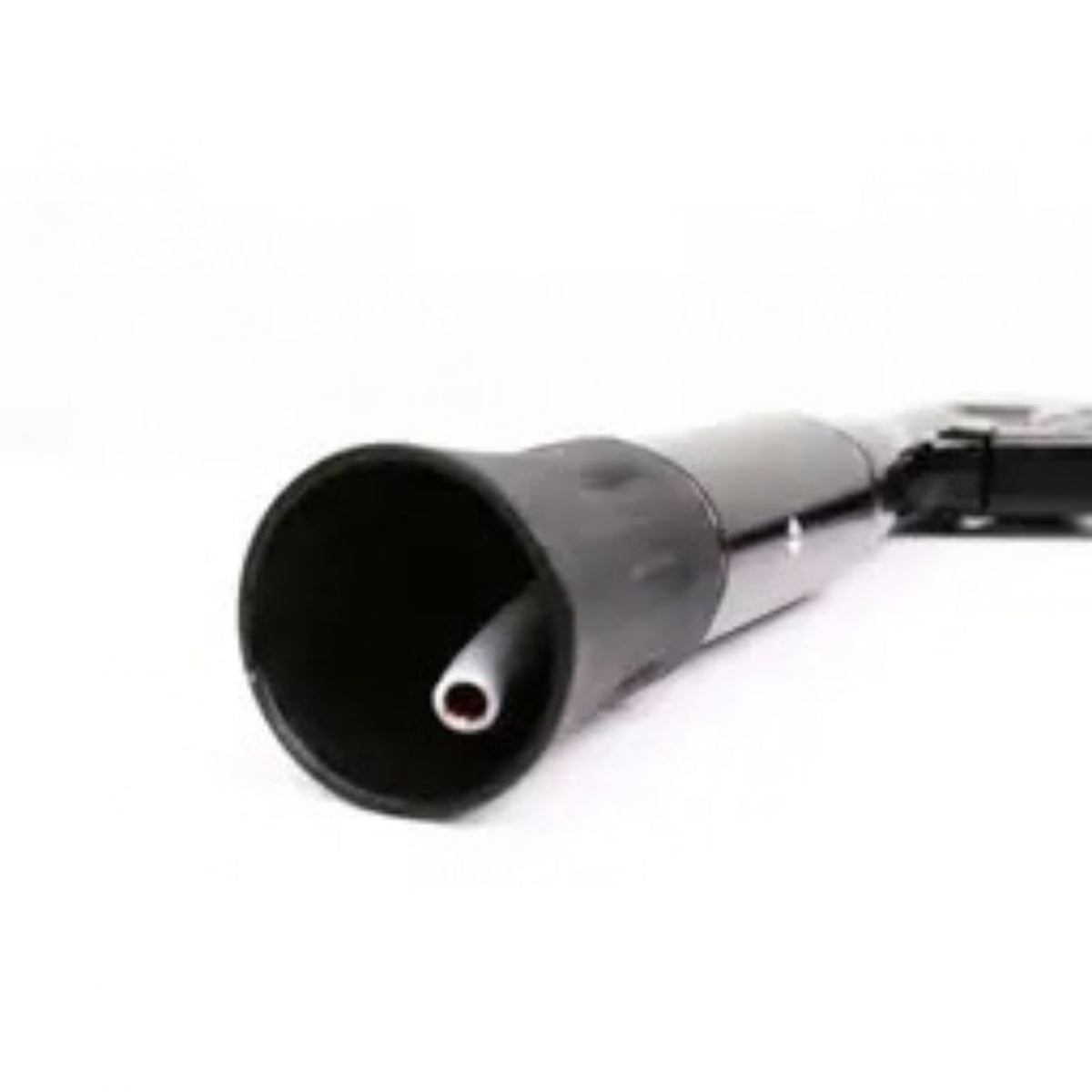

The SGCB SGGC077 replaces the silicone tube with a precision copper bearing mechanism. The bearing allows the assembly to spin much faster with virtually zero friction, producing a far more powerful cleaning vortex. It will not stall under pressure, offers smoother operation, and vastly outlasts silicone alternatives under daily commercial shop use.
What are the main benefits of a Tornador-style cleaning action over standard blow guns?
Standard compressed-air blow guns blow air in a straight, linear direction, which tends to flatten carpet pile or push dirt deeper into seams. A Tornador-style gun creates a high-frequency rotating air cone that strikes surfaces repeatedly from multiple angles. This pulsating vortex actively lifts ground-in sand, dirt, and pet hair out of fabric fibres and tight crevices without needing harsh chemical soaking or heavy manual scrubbing.
What size air compressor do I need to run the SGGC077?
Because driving an internal bearing mechanism continuously requires high airflow, the SGGC077 operates at an air consumption rate of roughly 120 L/min (6.0 to 8.0 bar). To maintain continuous operation without waiting for air pressure to recover, we recommend an air compressor with at least a 50-litre tank and a sustained output rating of 4.5 to 6.0 CFM or higher.
How does a Tornador-style air gun work?
Instead of a stationary nozzle, a Tornador-style gun contains a flexible tube mounted inside a high-speed bearing. When compressed air flows through, the tube spins rapidly inside the cone, creating a rotating vortex pattern. This rapid rotational pulse strikes surfaces repeatedly from multiple angles to loosen stubborn contaminants that flat air pressure cannot shift.
Is the SGGC077 safe to use on delicate interior trim and vehicle electronics?
Yes. The rotational air pulse agitates surfaces without requiring aggressive contact. However, when working near delicate digital displays, unsealed electrical switches, or loose upholstery stitching, maintain a working distance of 2–5 cm and lower your air regulator pressure slightly.
