NexDiag Paint Depth Gauge - Professional

  • €169,90
    Unit price per
Tax included. Shipping calculated at checkout.

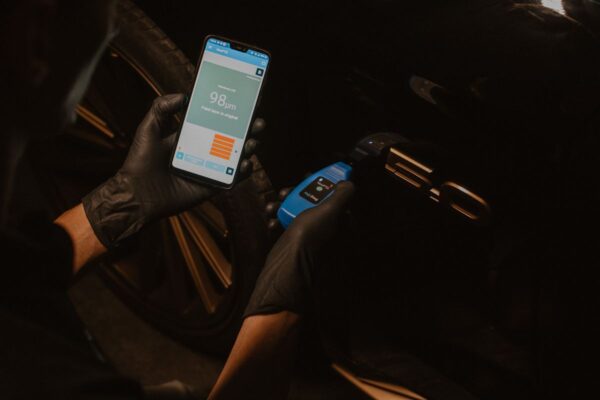

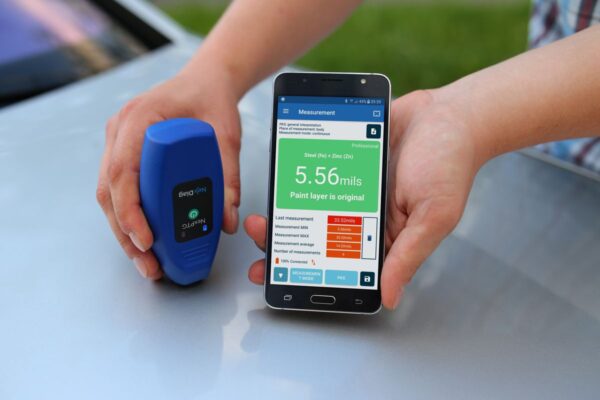

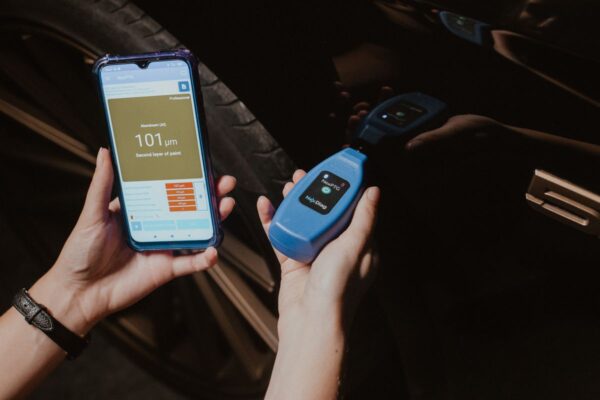

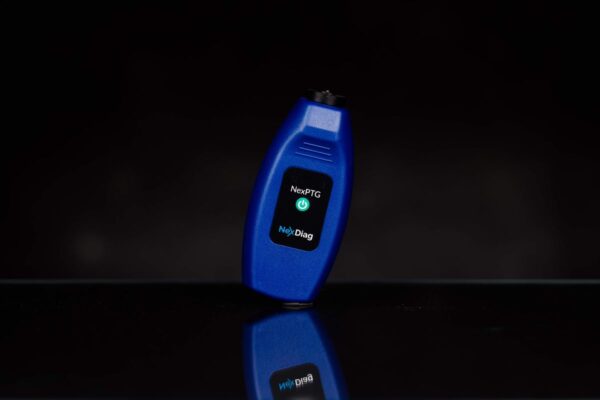

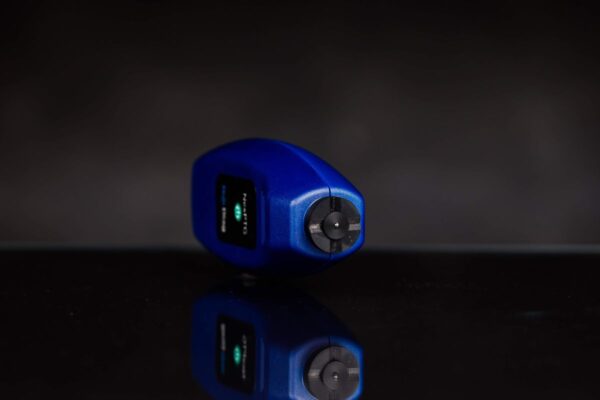

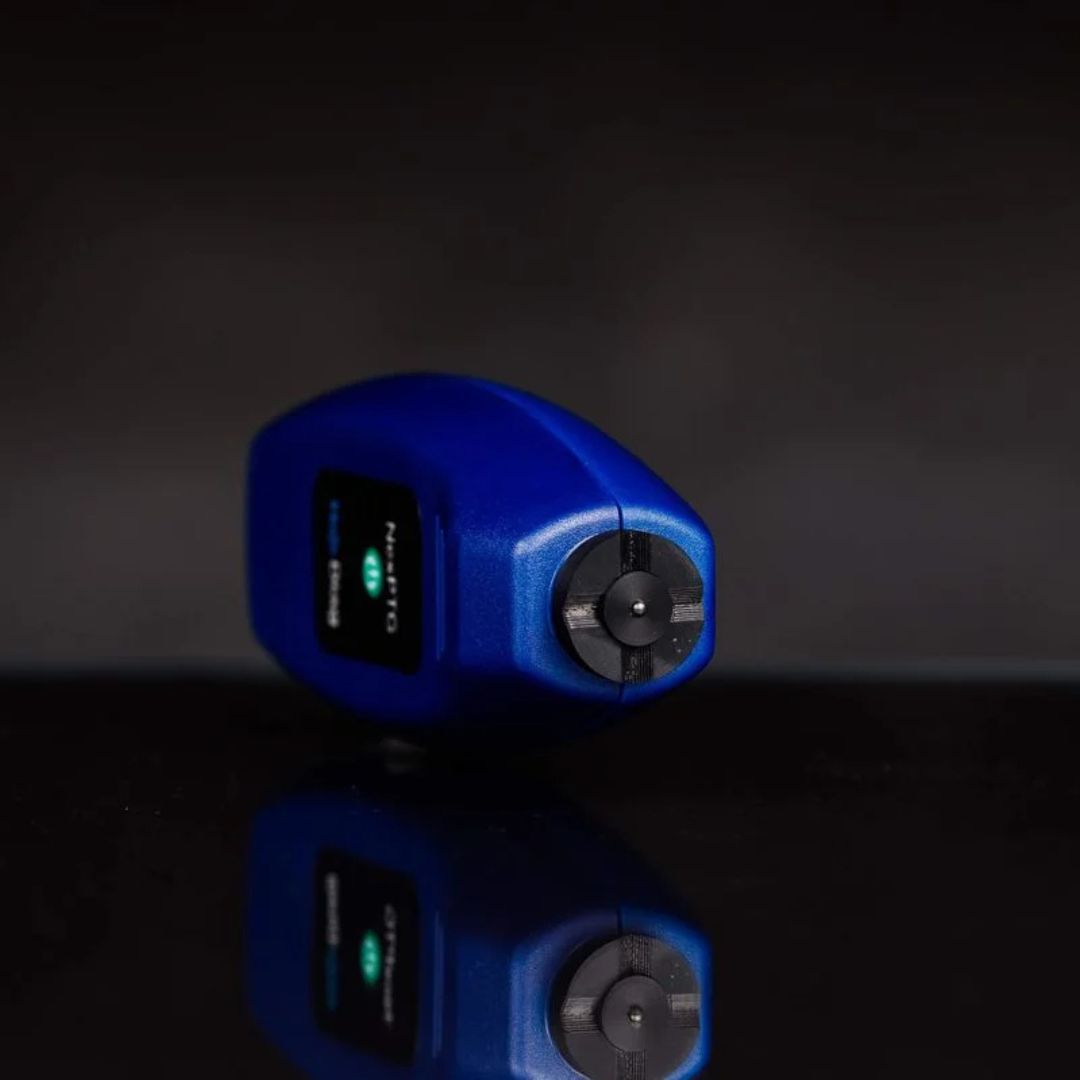

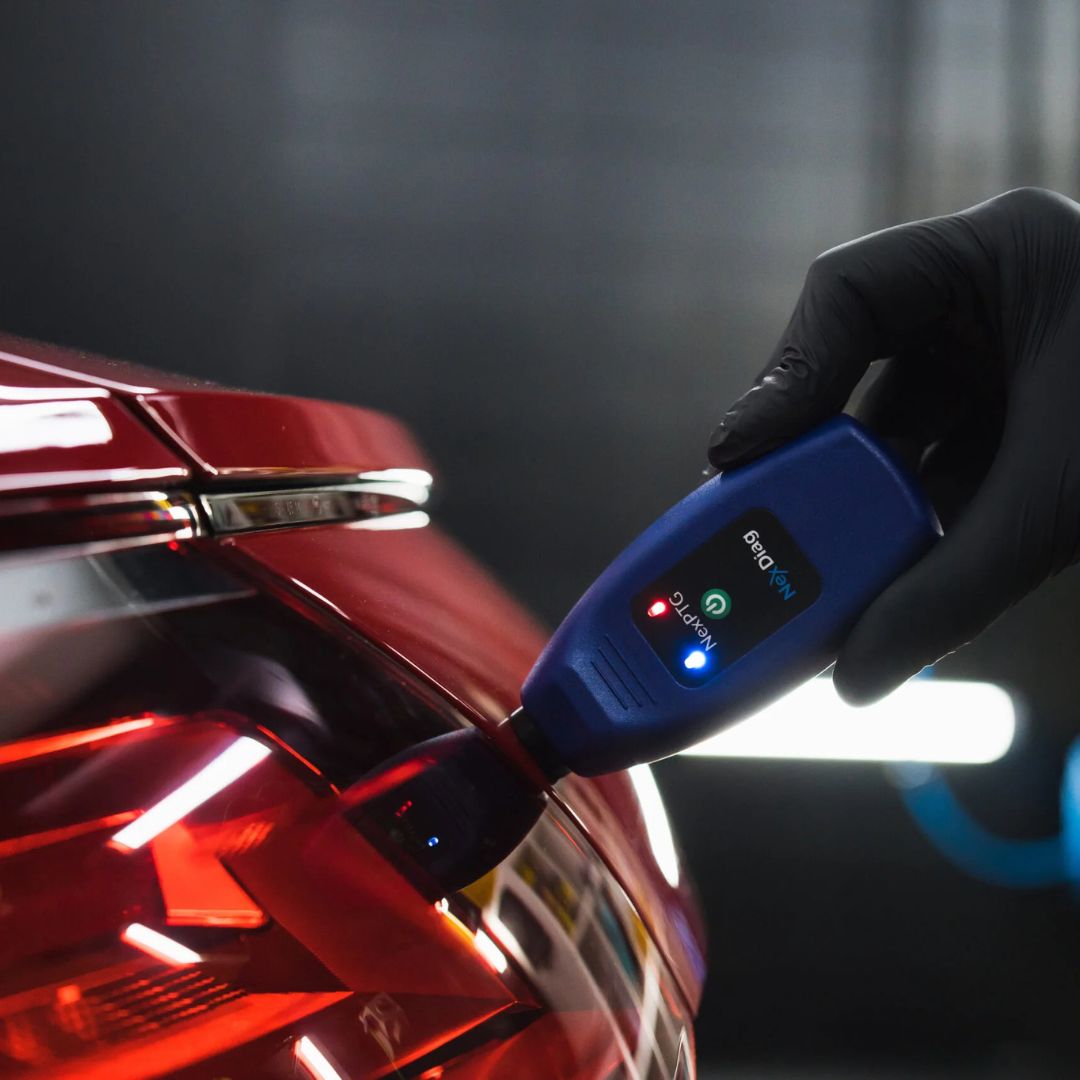

The NexPTG Professional is an advanced version of the NexPTG lacquer thickness gauge, which enables fast, accurate and intuitive vehicle testing. The meter has a movable spherical probe, which facilitates measurements also on the concave and convex parts of vehicles.

The Professional version makes measurements with even greater accuracy than the Economic and Standard versions. In addition, the Professional gauge has a number of options that will help the user to examine a vehicle more efficiently and more effectively, including:

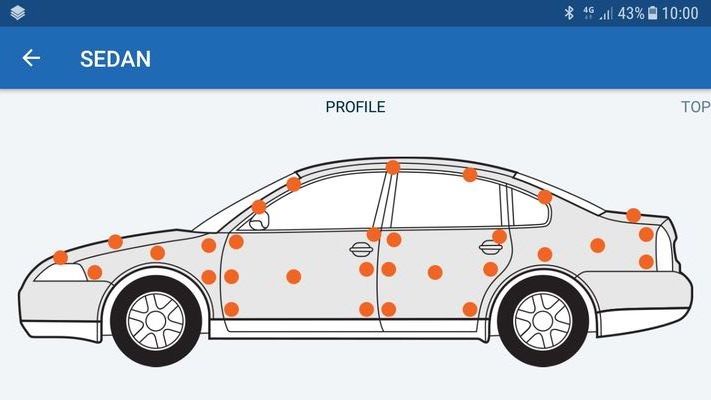

  • Suggested measurement points
  • Buyer’s guide
  • Export of measurement history

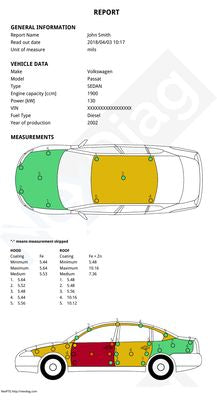

  • Creation of reports

Technical Specs:

  • Testing on the substrate: Steel [Fe] / Zinc-plated Steel [Fe+Zn] / Aluminum [AI]
  • Recognized substrate types: [Fe] / [Fe+Zn] / [AI]
  • Range of measurement: 0-2500 μm (0-98.43 mils)
  • Resolution of measurement: 1 μm (0.4 mils)
  • Type of probe/End of probe: movable/spherical
  • Possible measurement on curvatures (profiled probe housing)
  • Measurement memory: up to 400 items
  • Wireless transmission: Bluetooth 4.0 LE
  • Multilingual menu: PL, EN, DE, FR, IT, ES, RU, FA, CZ, HE, NL
  • Ambient temperature: -20°C to +40°C
  • SAPL Basic: lacquer coating analysis system
  • Suggested measurement points
  • Creation and export of measurement history
  • Creation and export of reports
  • API communication
  • Supported systems: iOS/Android

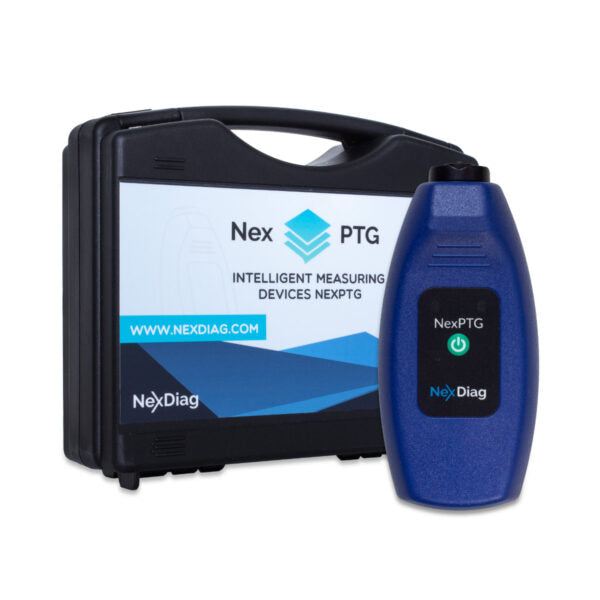

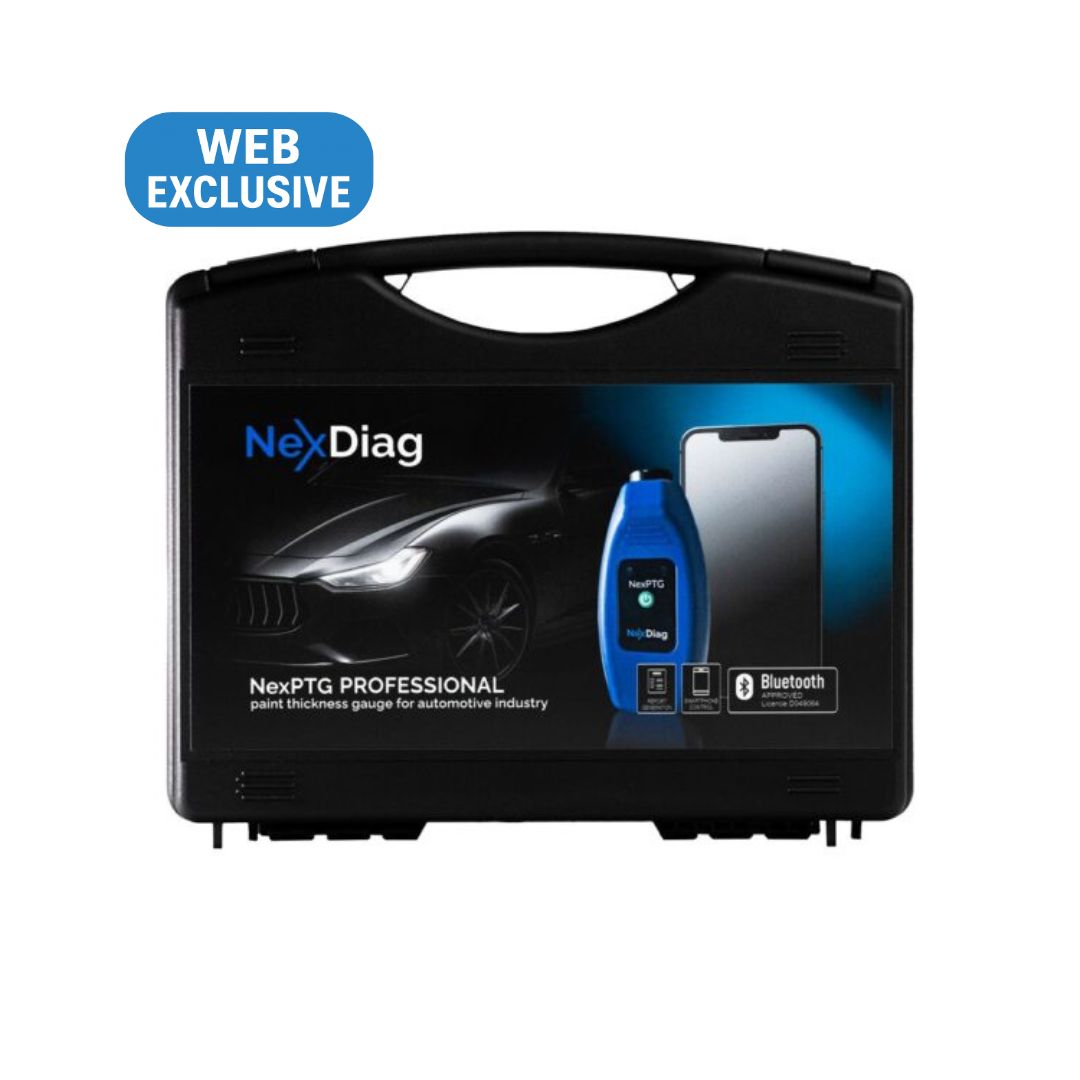

    What's in the box?

    • NexPTG device
    • Calibration kit
    • User manual
    • Battery Set
    • Box

    Professional Software

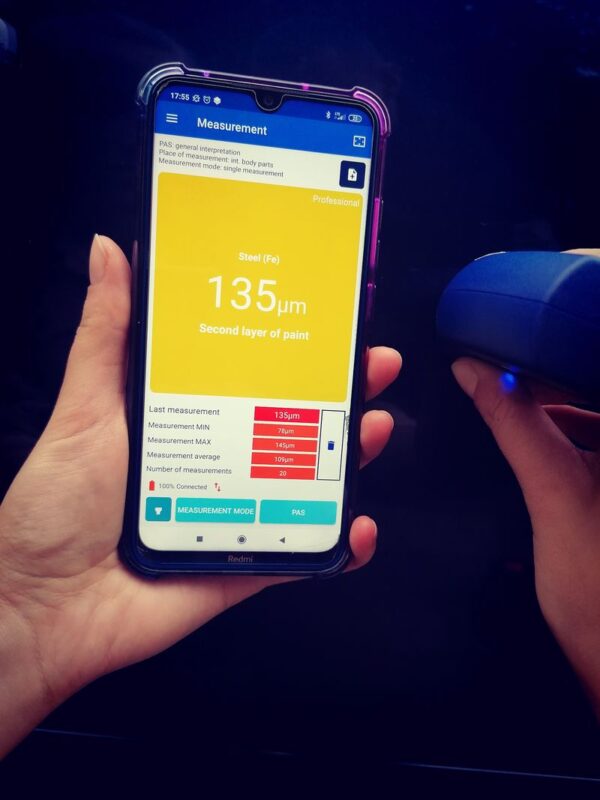

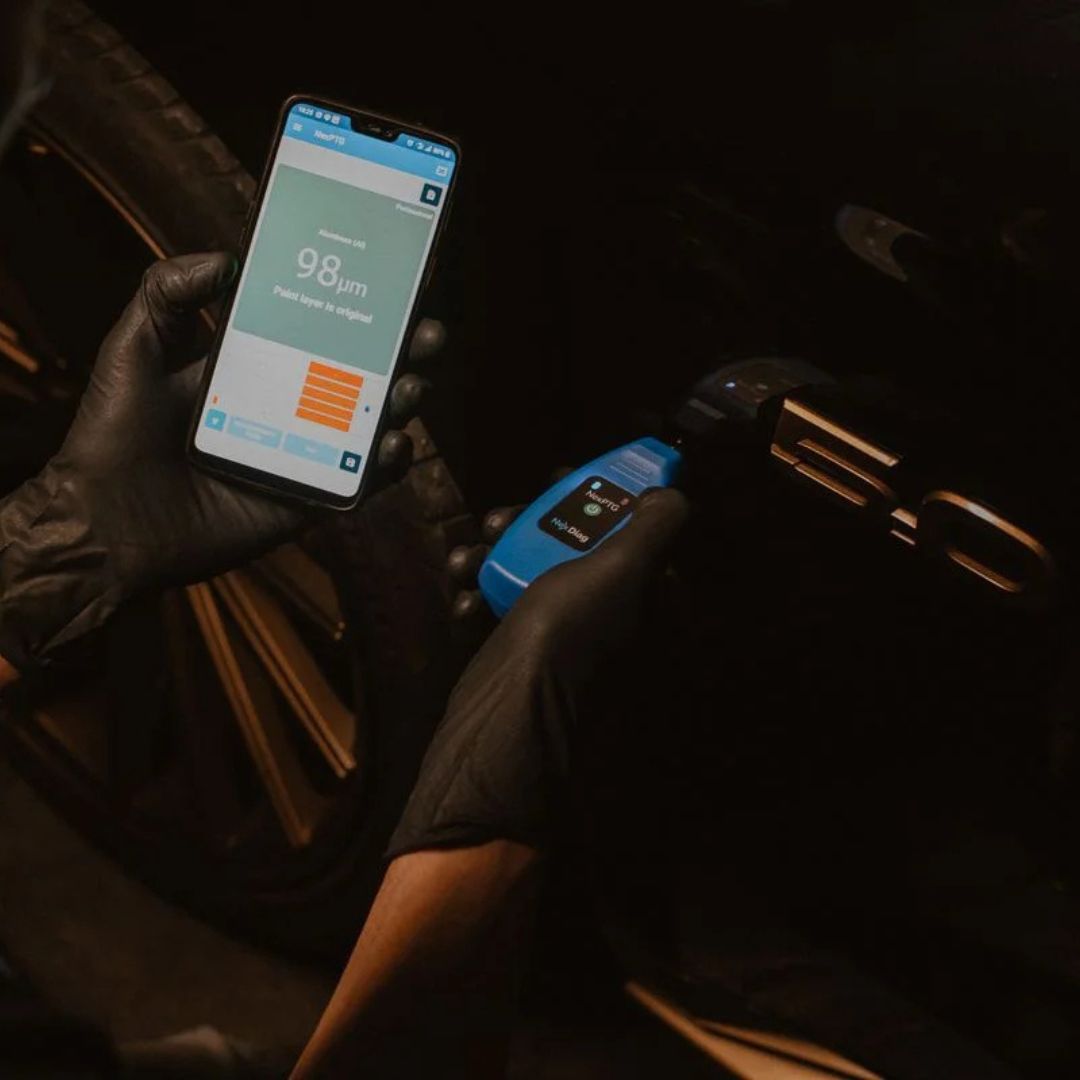

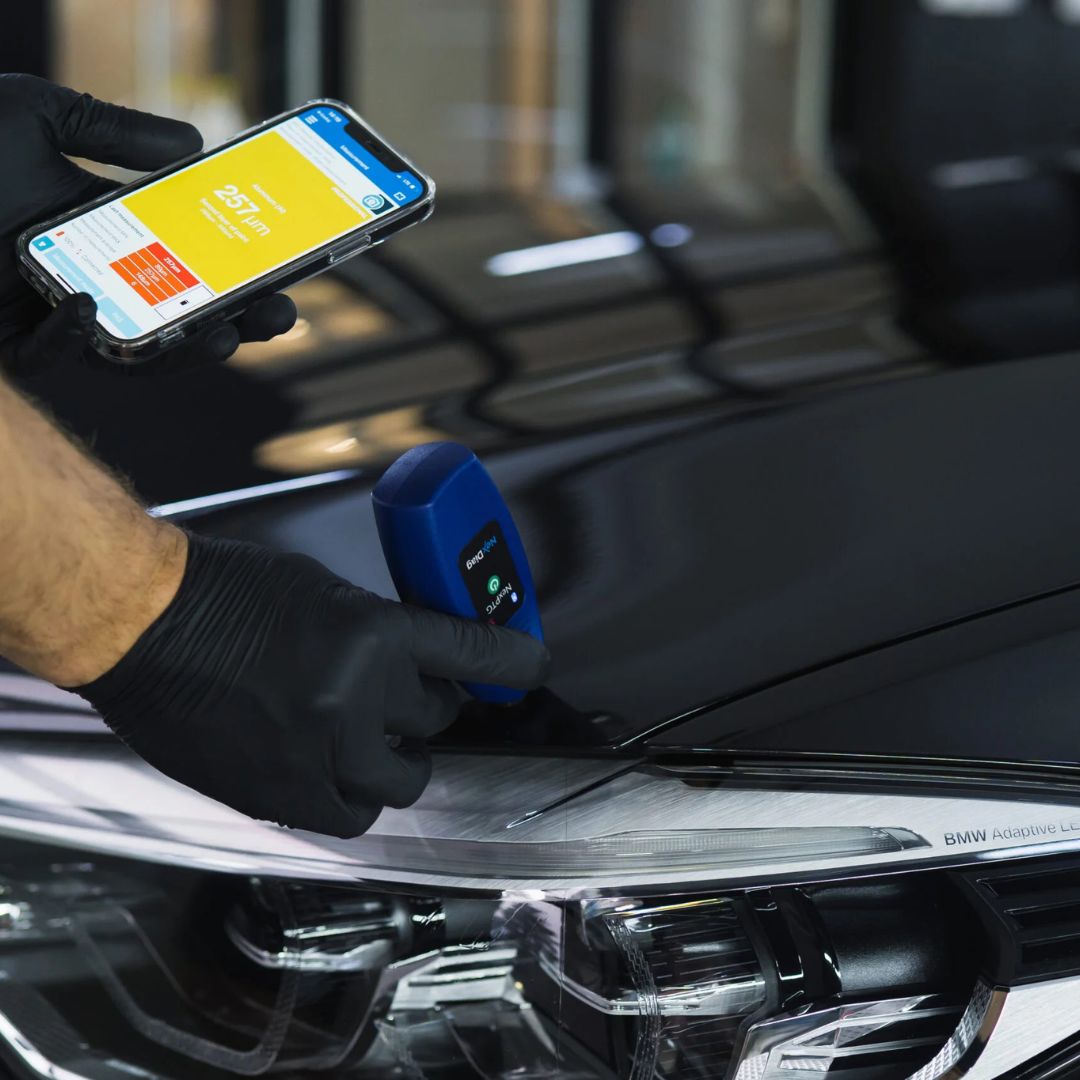

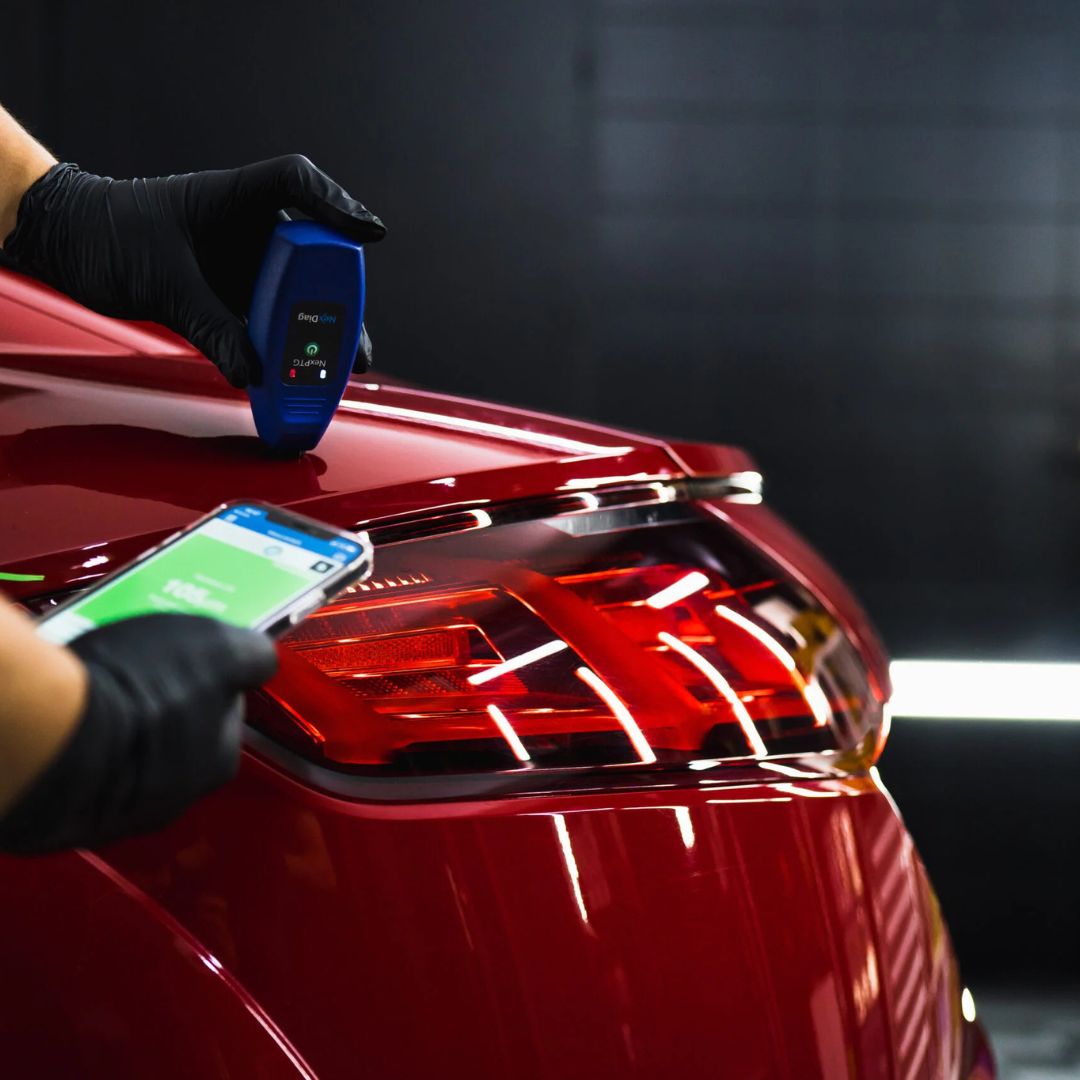

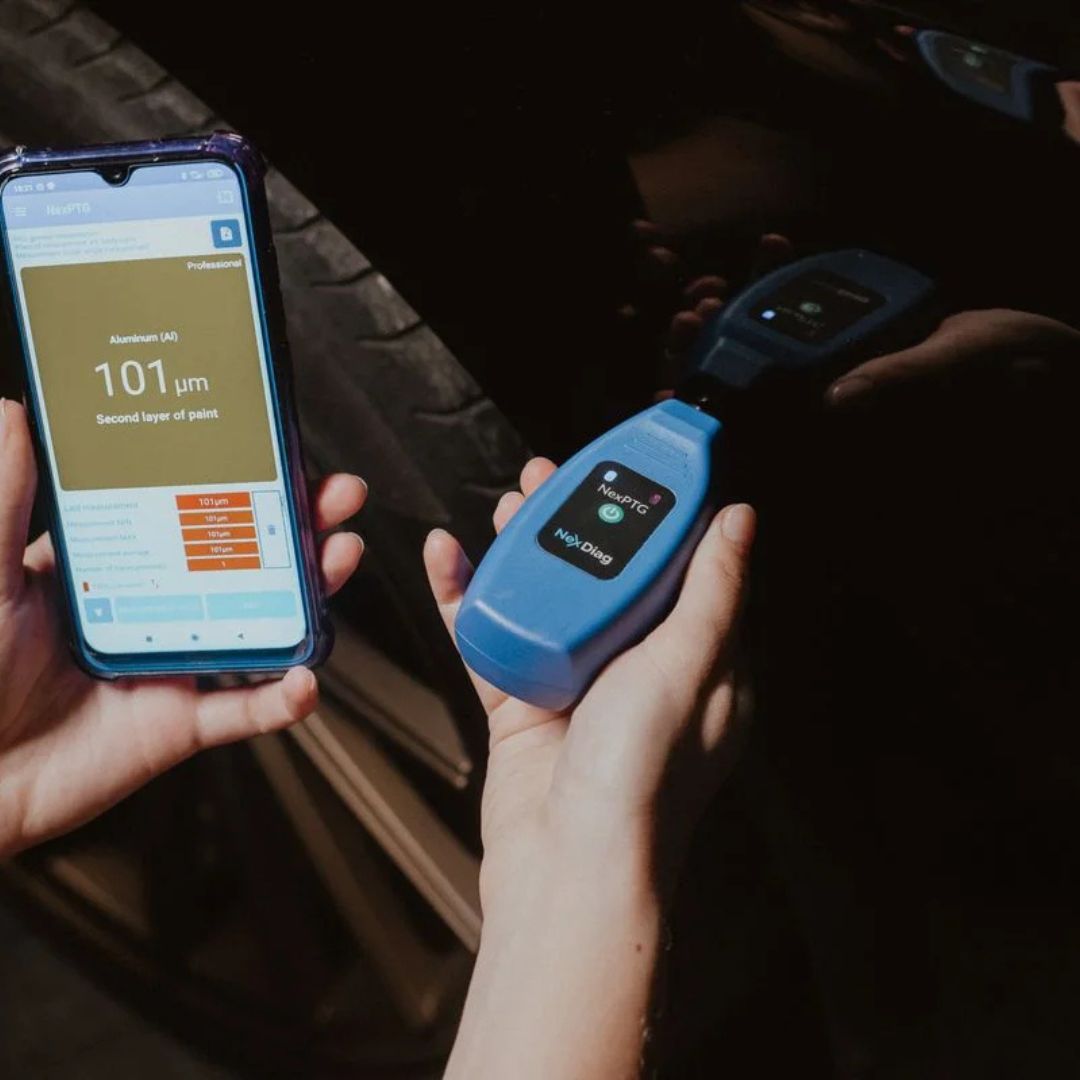

    NexPTG has a dedicated smart phone app allowing you to examine the lacquer coat with unprecedented accuracy and precision.

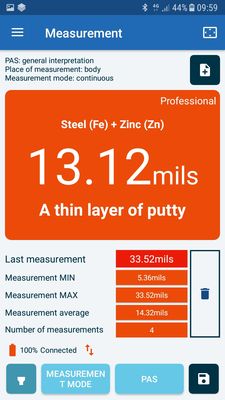

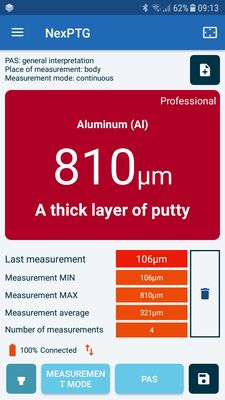

    Thanks to the Lacquer Coating Analysis System you can analyse the lacquer on the surface of the entire body in an instant, and the application will help you interpret the results of measurements.
    No other device on the market offers such possibilities.
