NexDiag Paint Depth Gauge - Standard Plus

  • €109,95
    Unit price per
Tax included. Shipping calculated at checkout.

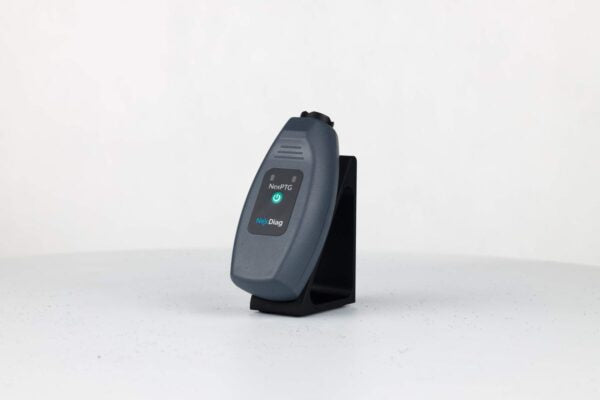

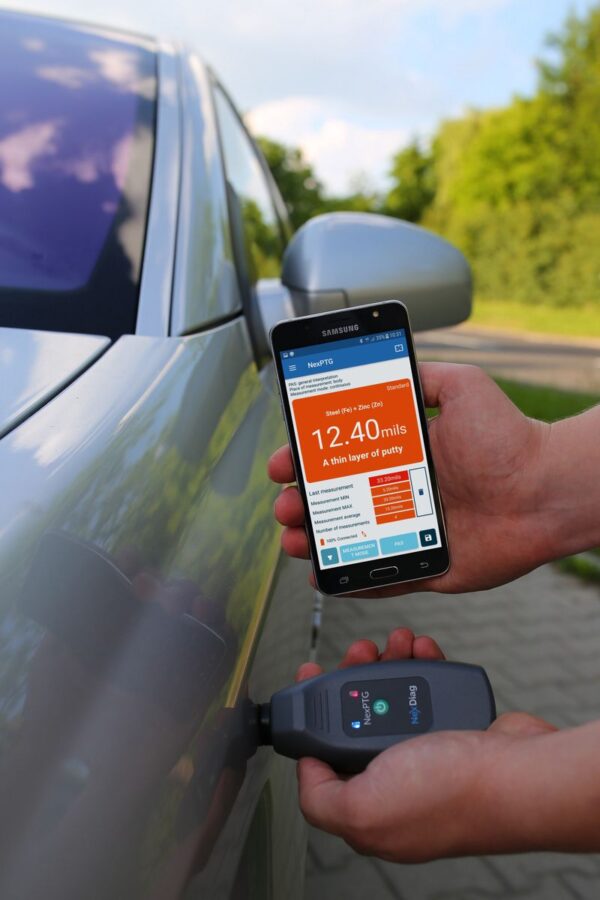

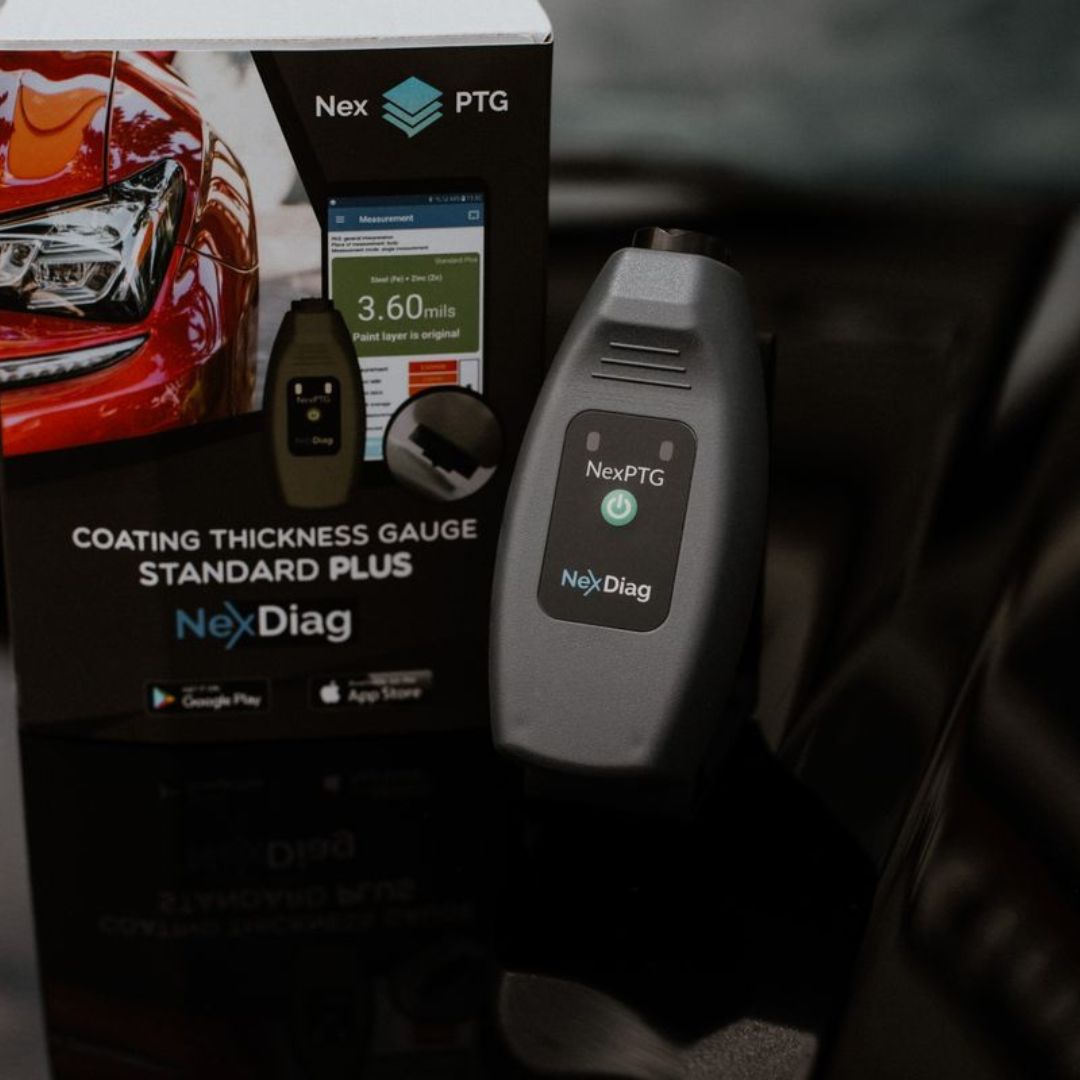

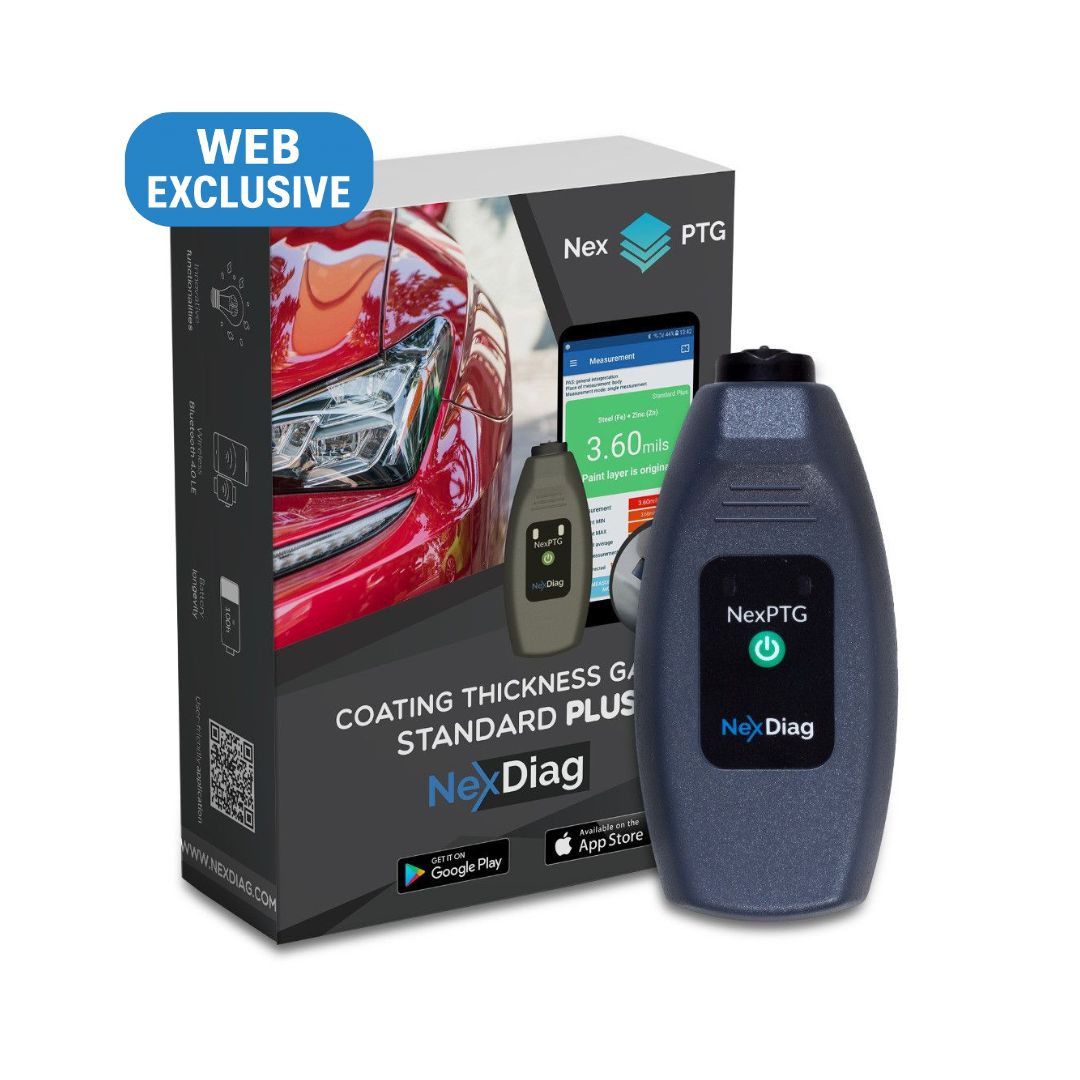

The NexPTG Standard Plus is the basic version of the NexPTG lacquer thickness gauge. The meter has a movable spherical probe, which facilitates measurements also on the concave and convex parts of vehicles. The NexPTG Standard Plus is the base model of the meter in an extended version which not only allows fast and precise measurements but comes equipped with a profile point probe that allows the user to also test on rounded surfaces of the vehicle too!

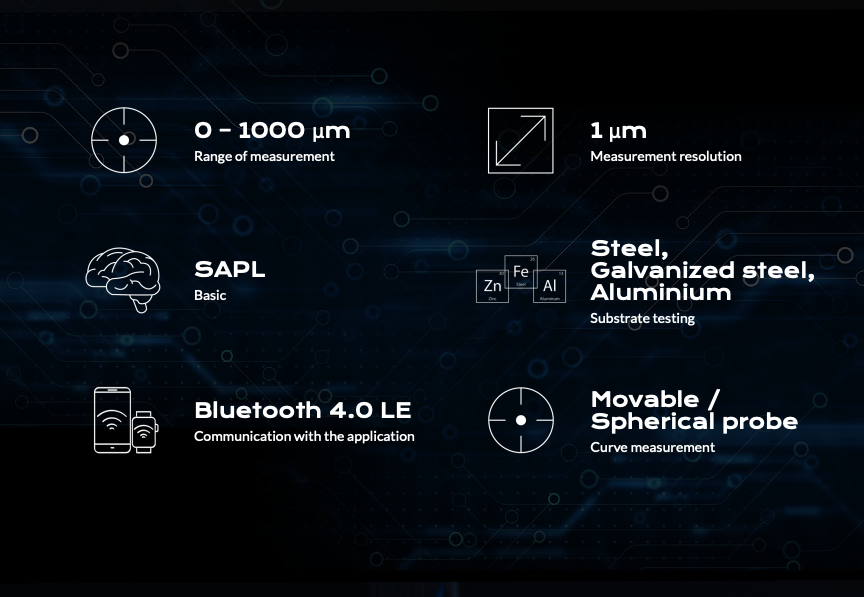

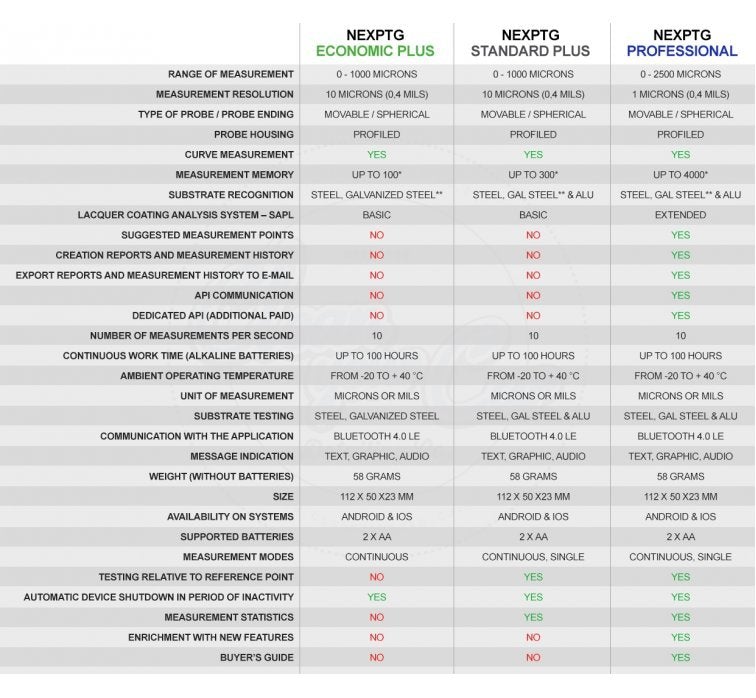

Technical Specs:

  • Testing on the substrate: Steel [Fe] / Zinc-plated Steel [Fe+Zn] / Aluminum [AI]
  • Recognized substrate types: [Fe] / [Fe+Zn] / [AI]
  • Range of measurement: 0-1000 μm (0-39.37 mils)
  • Resolution of measurement: 10 μm (0.4 mils)

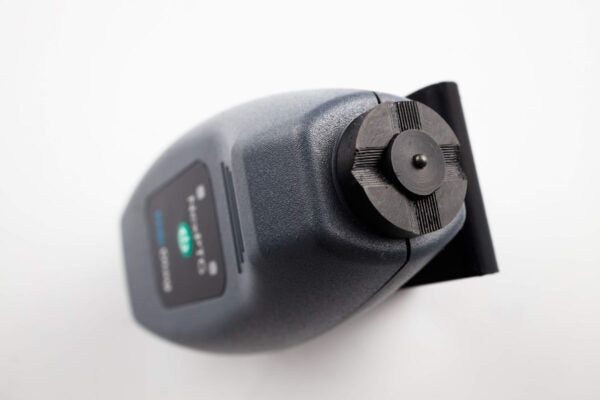

  • Type of probe/End of probe: movable/spherical
  • Possible measurement on curvatures (profiled probe housing)
  • Measurement memory: up to 300 items
  • Wireless transmission: Bluetooth 4.0 LE
  • Multilingual menu: PL, EN, DE, FR, IT, ES, RU, FA, CZ, HE, NL
  • Ambient temperature: -20°C to +40°C
  • SAPL Basic: lacquer coating analysis system
  • Testing relative to reference point
  • Measurement statistics
  • Supported systems: iOS/Android – iOS 8 or Later, Android 4.3 or Later

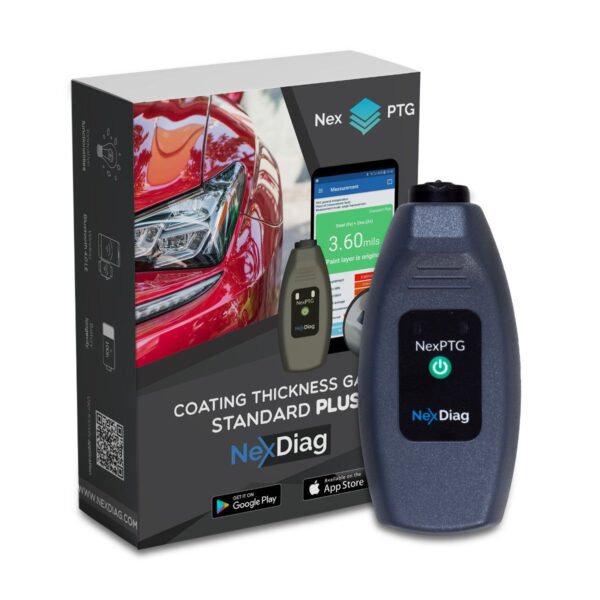

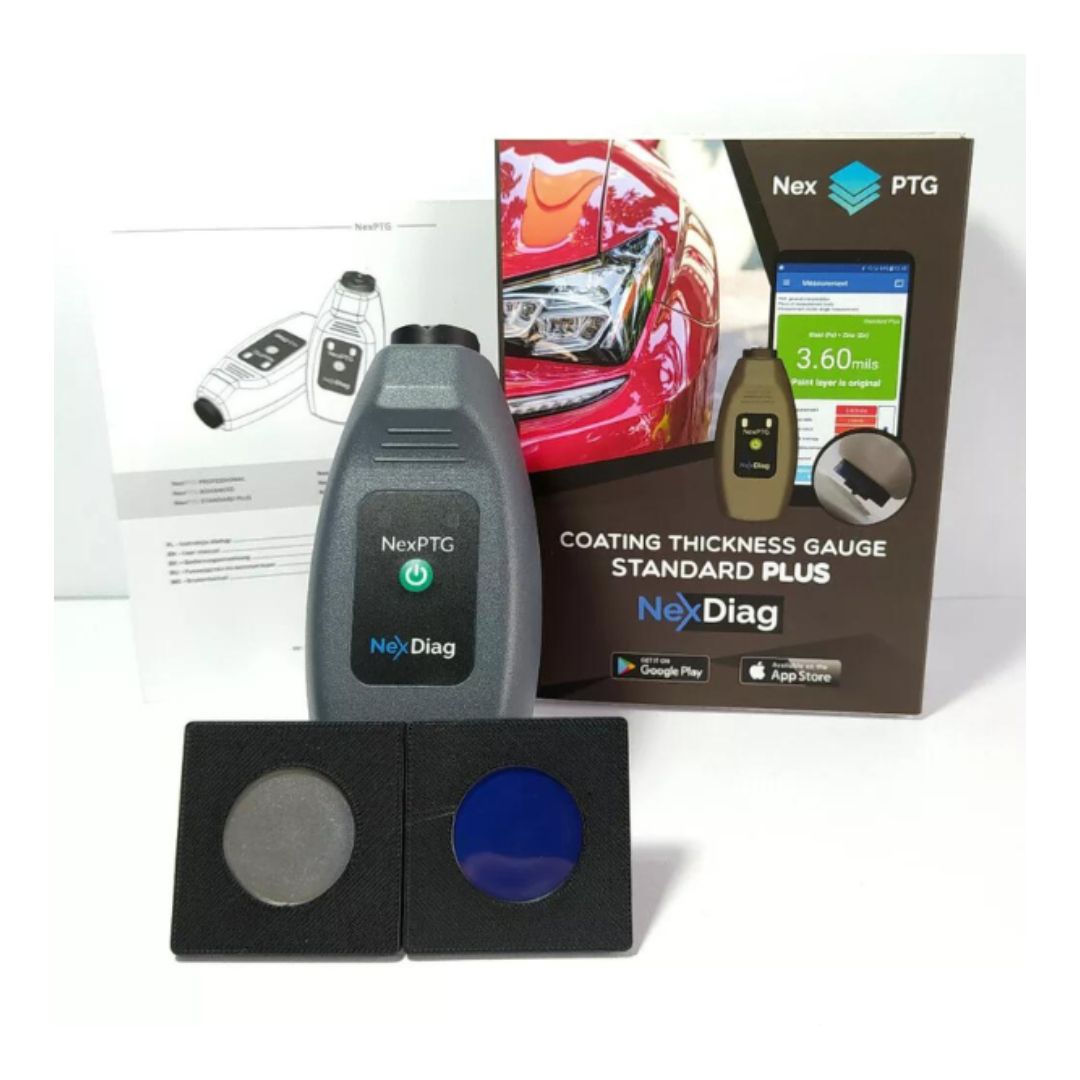

    What's in the box?

    • NexPTG device
    • Calibration kit
    • User manual
    • Battery Set
    • Box

    Professional Software

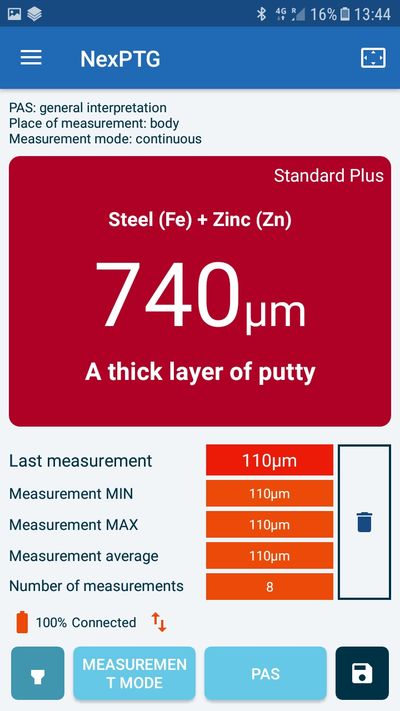

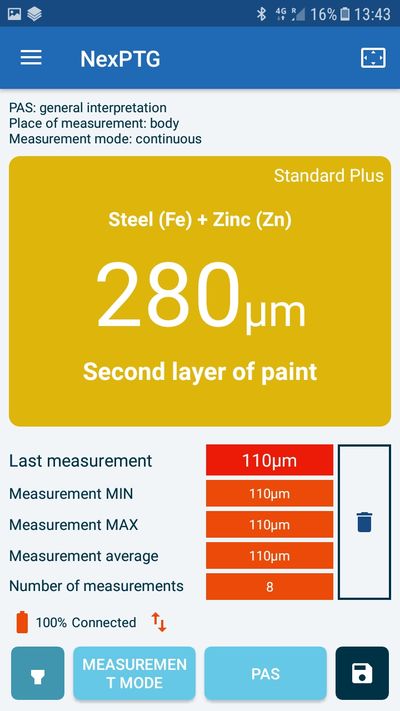

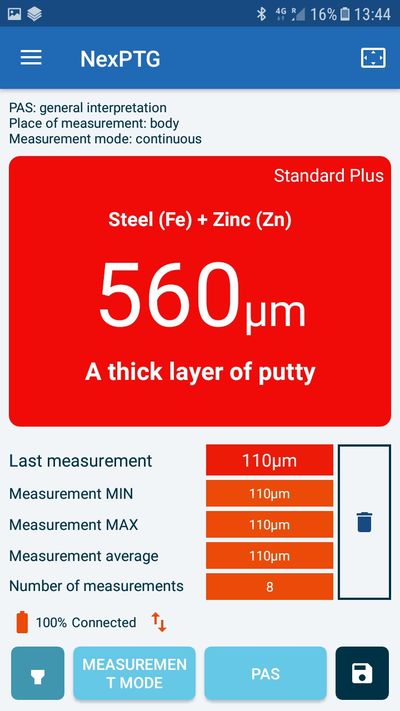

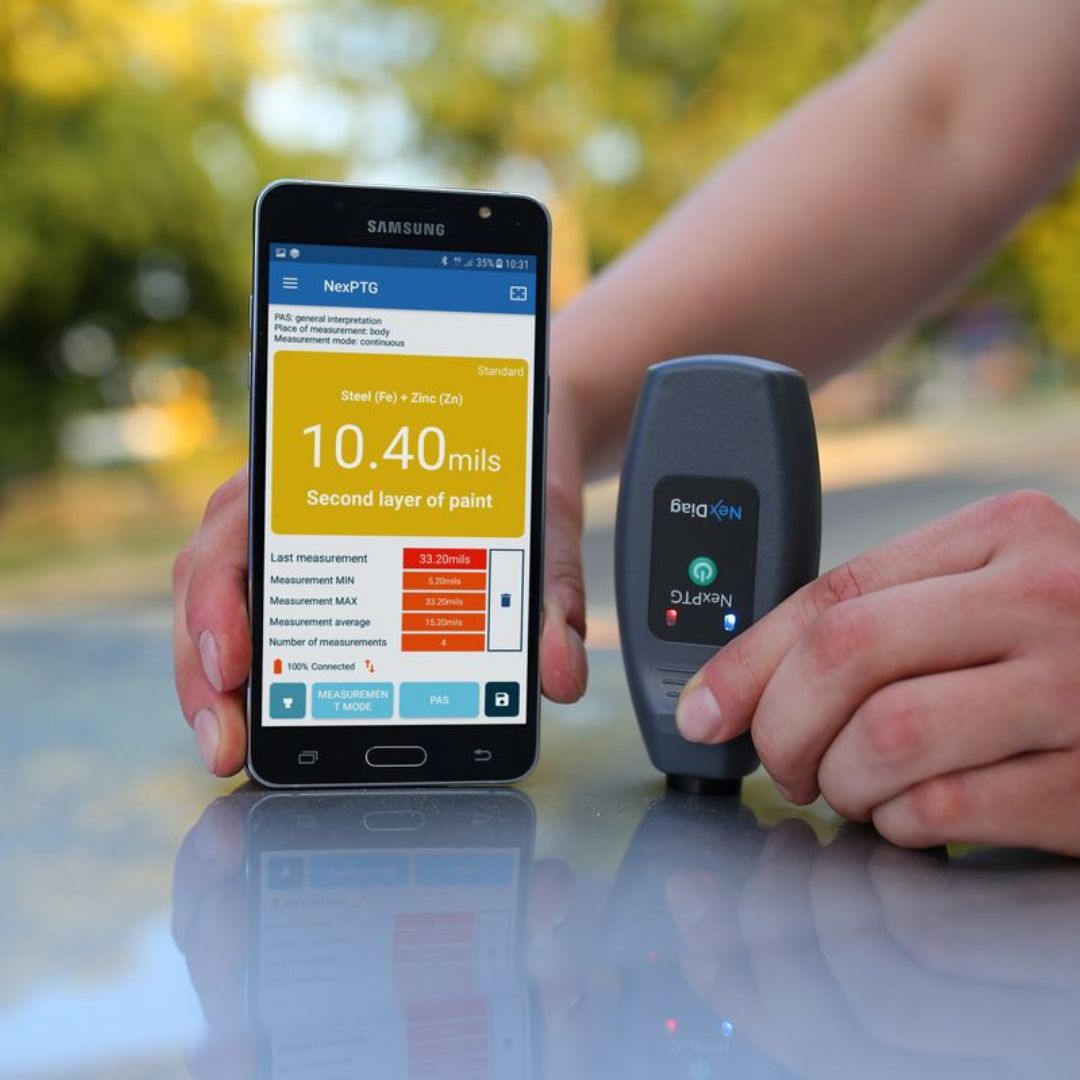

    NexPTG has a dedicated smart phone app allowing you to examine the lacquer coat with unprecedented accuracy and precision.
    Thanks to the Lacquer Coating Analysis System you can analyse the lacquer on the surface of the entire body in an instant, and the application will help you interpret the results of measurements.
    No other device on the market offers such possibilities.
